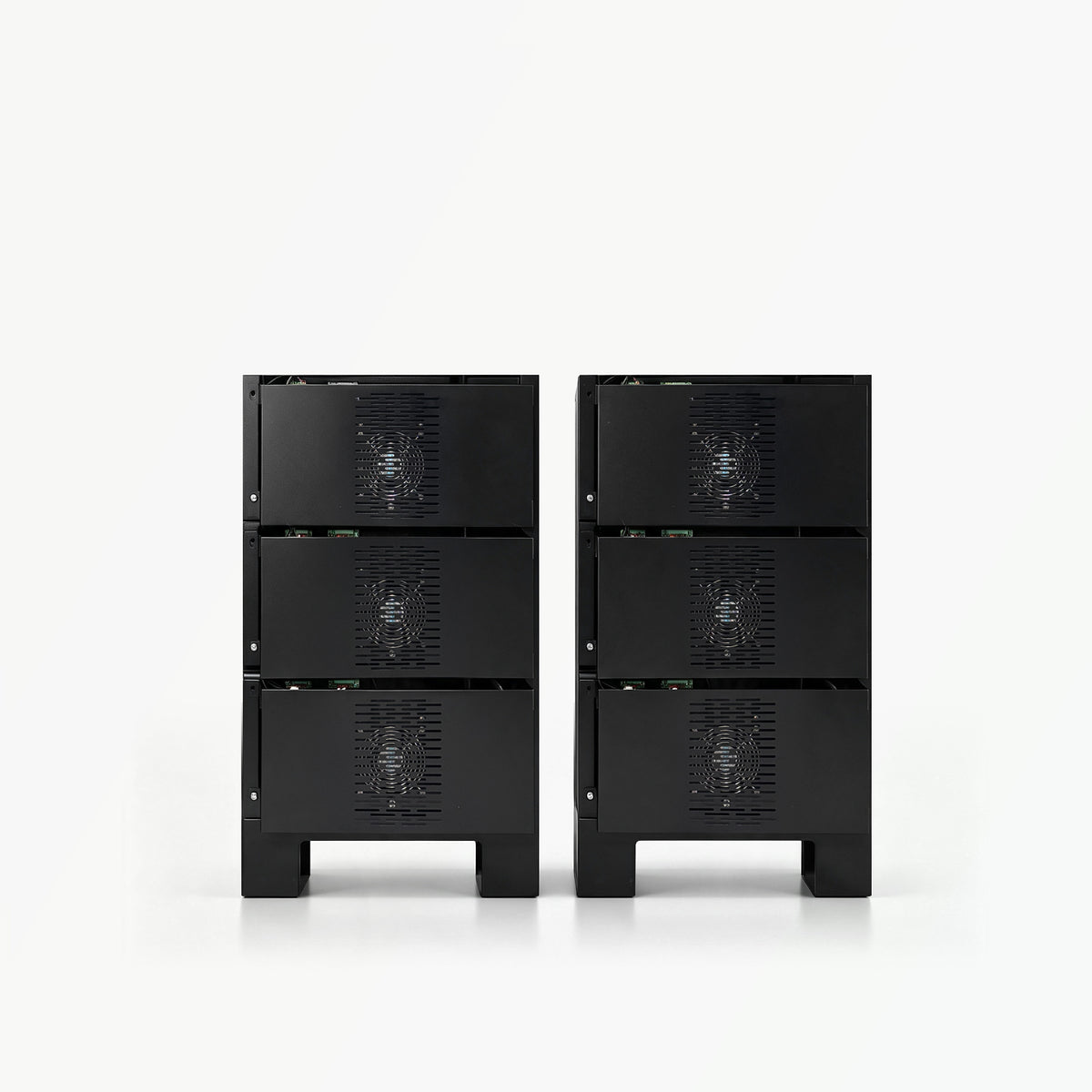

LS 112kWh High-Voltage Three-Phase Commercial ESS

commercial · high-voltage

Custom Power
112000Wh Capacity
Hybrid and Off-Grid Mode
  • Extended HV Capacity
  • BACnet Protocol
  • Modular Architecture
  • N+1 Redundancy

Applications

Large FactoryCold Chain LogisticsUniversity Campus

Product Highlights

  • Extended HV Capacity
  • BACnet Protocol
  • Modular Architecture
  • N+1 Redundancy

Technology

Cell Chemistry: LiFePO4 (Lithium Iron Phosphate) — inherently non-flammable, thermally stable, 6000+ cycle life at 80% DoD.

BMS Protection: Multi-level BMS with over-voltage, under-voltage, over-current, short-circuit, and temperature protection on every cell string.

Operating Range: Designed for -10°C to +50°C ambient — fully compatible with Middle Eastern summers and tropical humidity.

Parallel Expansion: Supports multi-unit parallel connection (up to 8 units) for linear capacity growth without additional inverter hardware.

Capacity 112000Wh
Working Voltage 324.8vdc-403.2vdc

Off-Grid

Off-Grid Mode

Solar panels connect to Lumstor and home loads. No grid connection is required.

Hybrid

Hybrid Mode

Solar panels and grid input work together, with battery storage available for night use and backup.

Parallel

Parallel Expansion

Multiple Lumstor units can be connected for capacity growth on larger residential or commercial projects.

Product Datasheet
Installation Manual
BMS Wiring Diagram
Parallel Connection Guide
