Commercial ESS

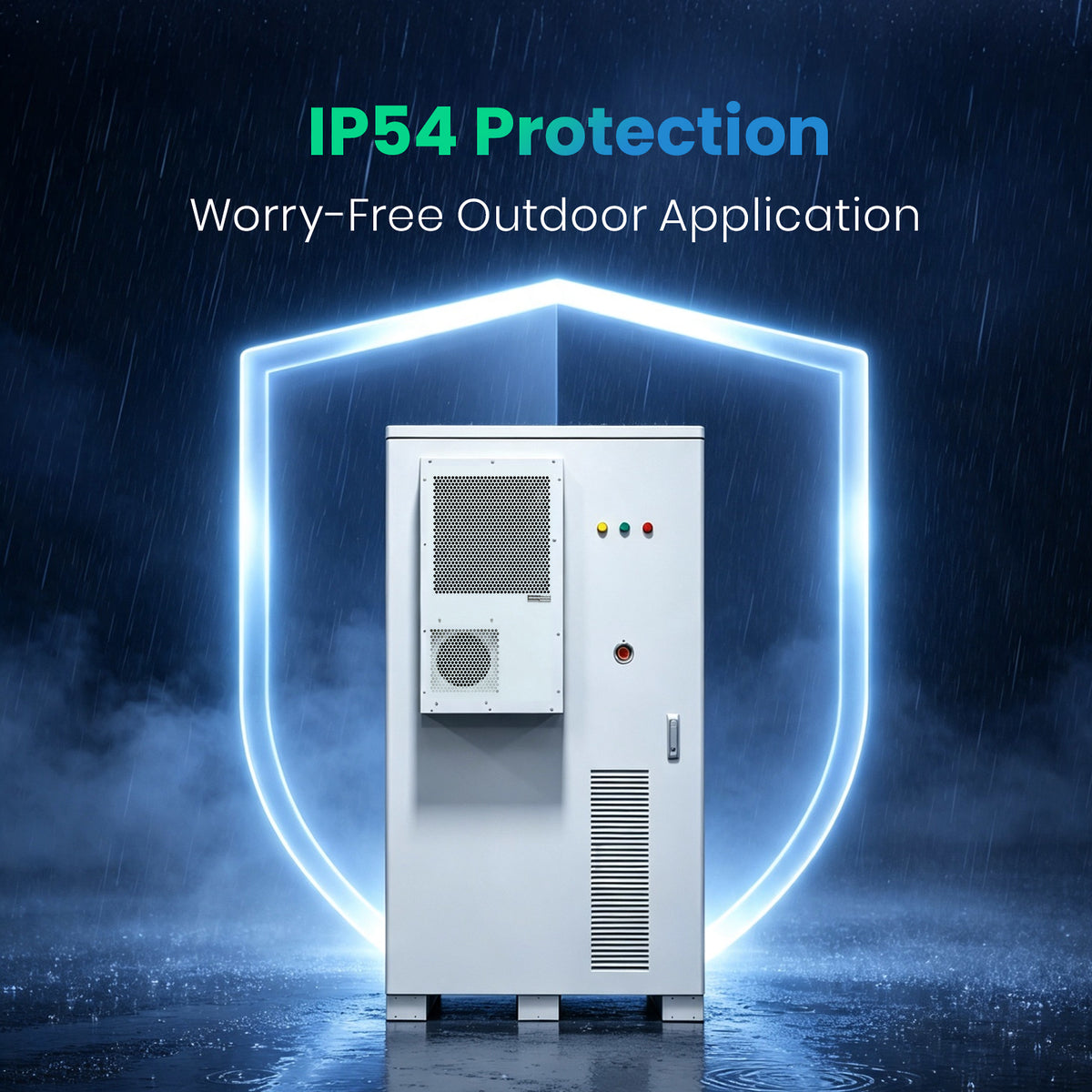

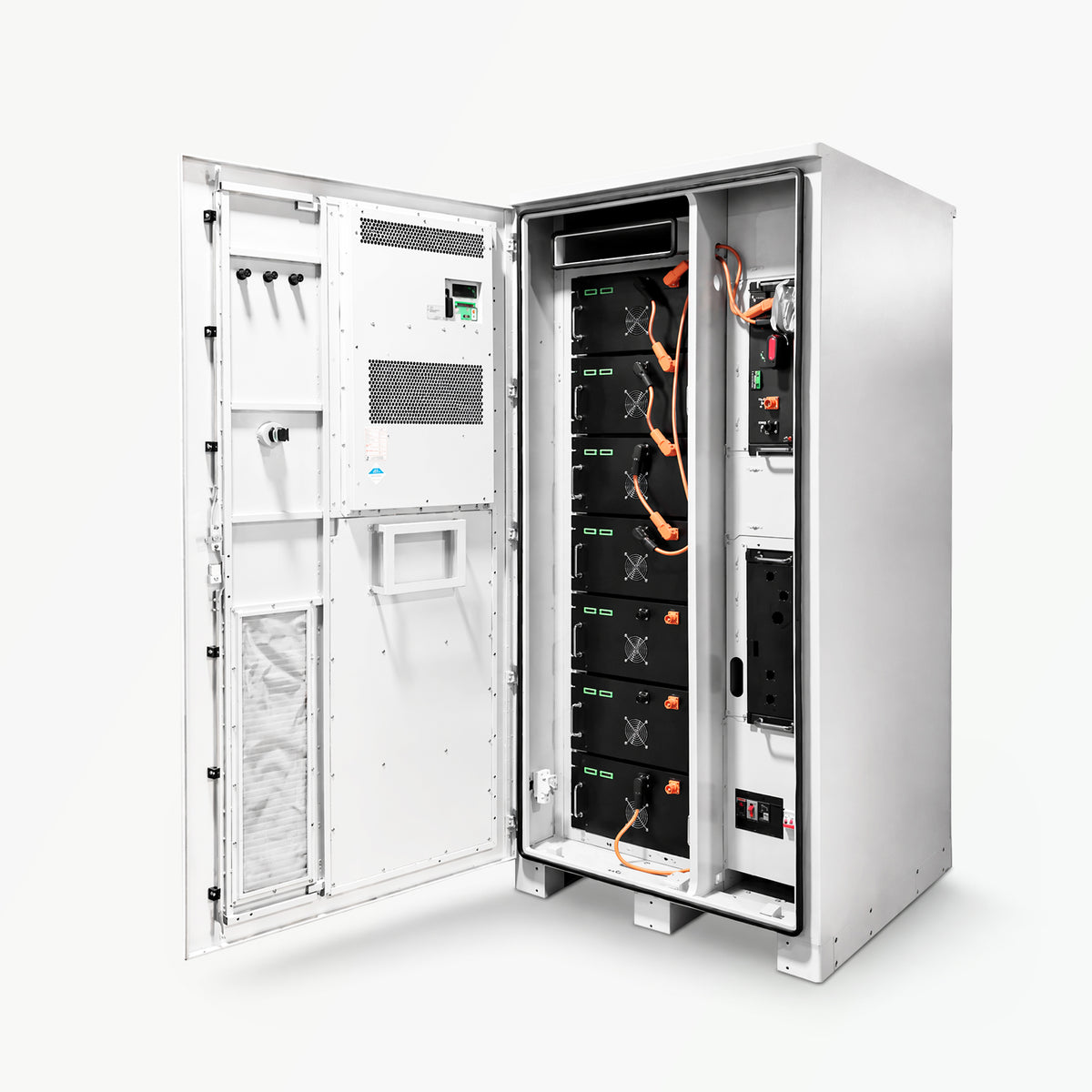

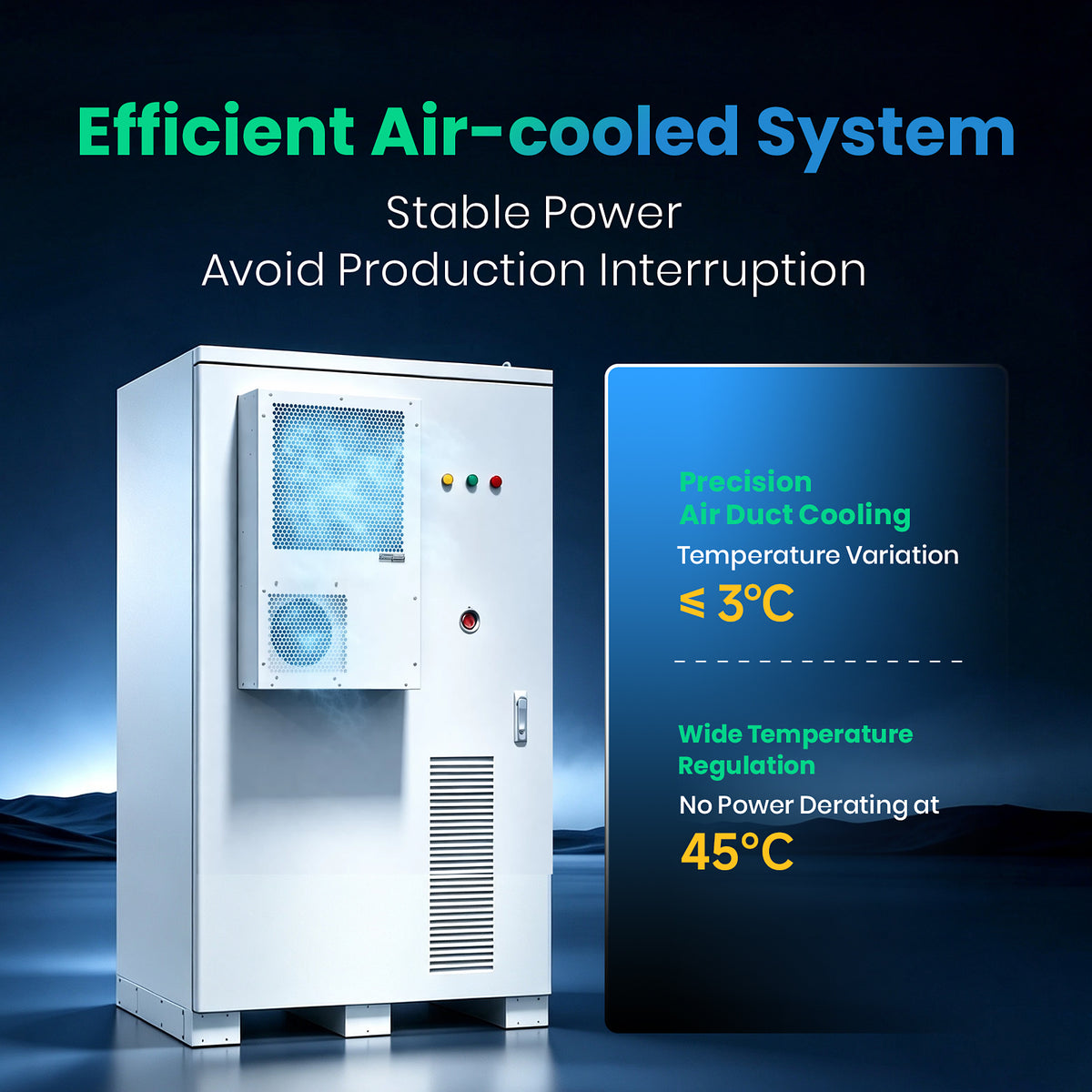

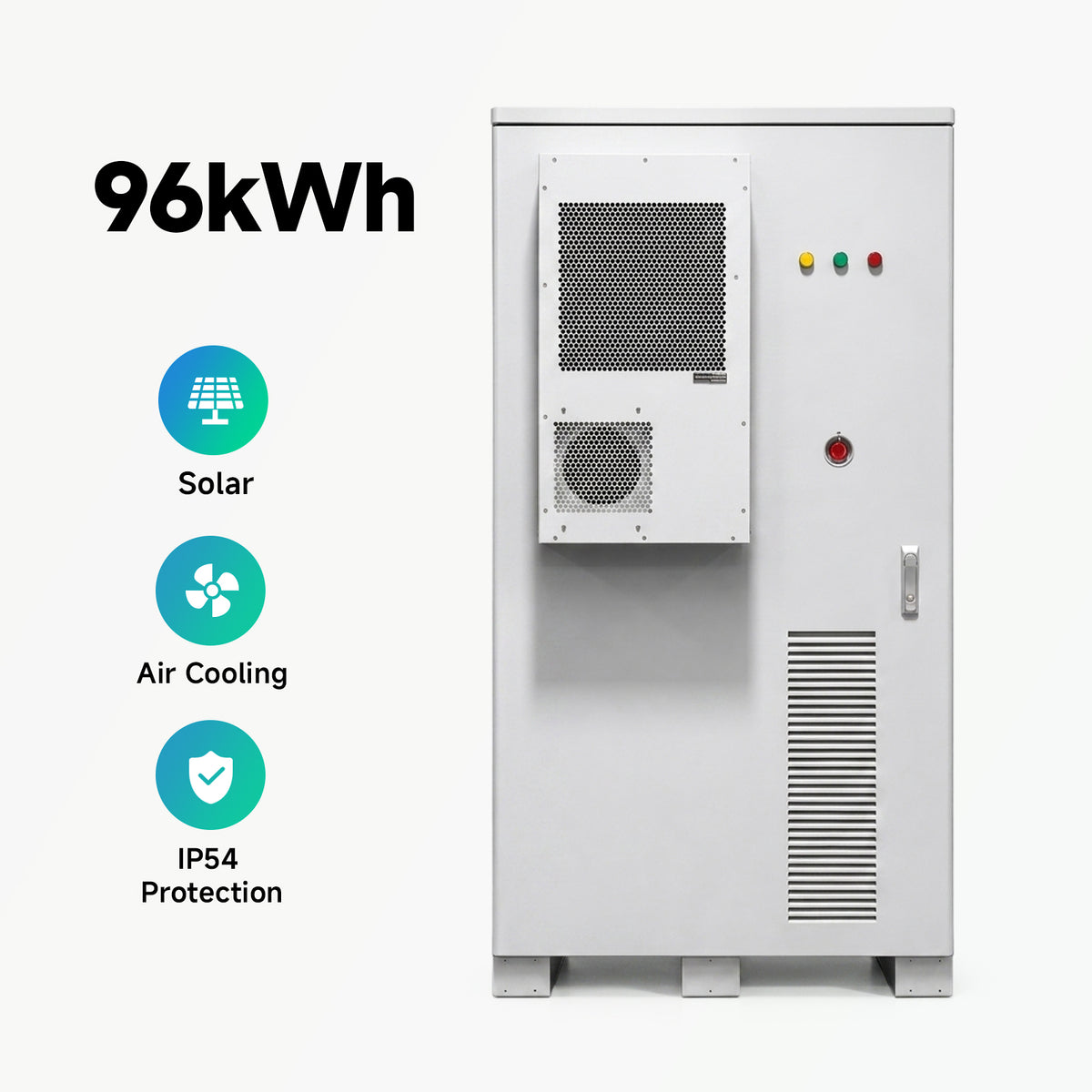

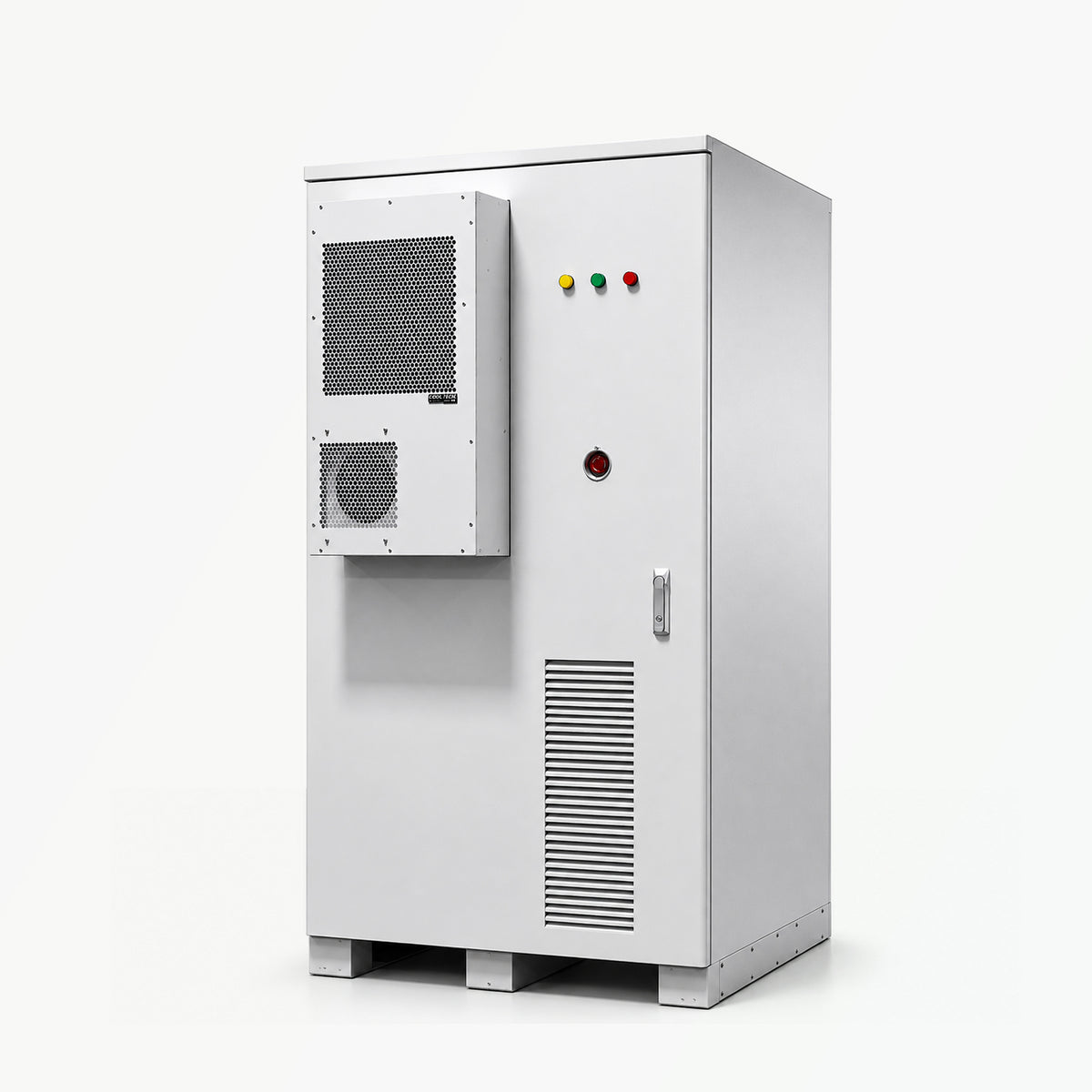

LS 96kWh High-Voltage Three-Phase Commercial ESS

commercial · high-voltage

60000W Power
96000Wh Capacity
Hybrid and Off-Grid Mode
  • Three-Phase Output
  • High-Voltage Architecture
  • EMS Integration
  • UPS Mode

Applications

Large Industrial ParkCommercial ComplexAgricultural Irrigation

Product Highlights

  • Three-Phase Output
  • High-Voltage Architecture
  • EMS Integration
  • UPS Mode

Technology

Cell Chemistry: LiFePO4 (Lithium Iron Phosphate) — inherently non-flammable, thermally stable, 6000+ cycle life at 80% DoD.

BMS Protection: Multi-level BMS with over-voltage, under-voltage, over-current, short-circuit, and temperature protection on every cell string.

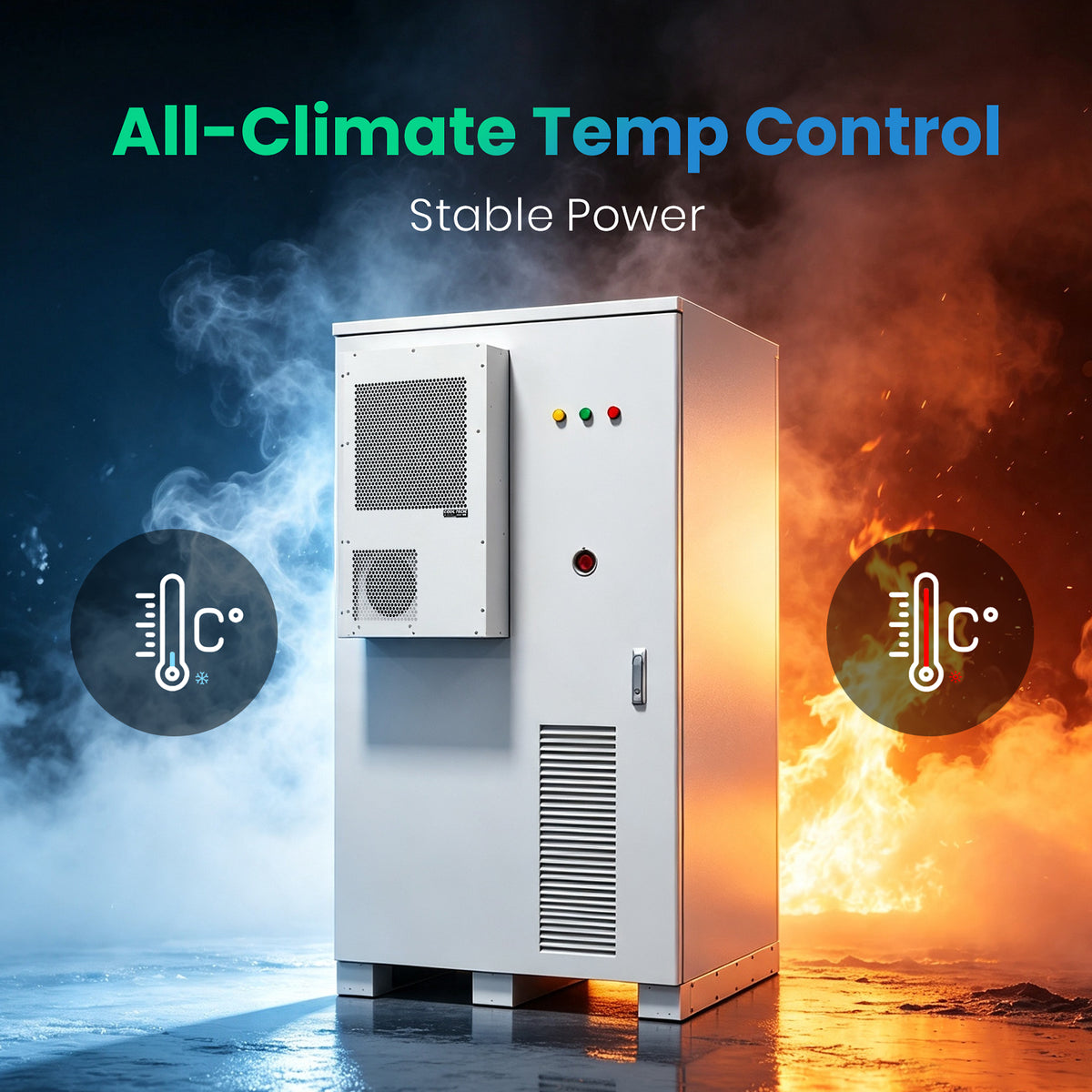

Operating Range: Designed for -10°C to +50°C ambient — fully compatible with Middle Eastern summers and tropical humidity.

Parallel Expansion: Supports multi-unit parallel connection (up to 8 units) for linear capacity growth without additional inverter hardware.

Rated Power 60000W
Capacity 96000Wh
Cell Type Grade-A LiFePO4 / Gotion 314Ah
Output Voltage 380/400VAC Three-Phase
Working Voltage 200Vdc – 800Vdc
Dimensions (L×W×H) 1200 × 800 × 2200 mm
Display & Comm. Industrial HMI / Wi-Fi + 4G + RS485 + CAN

Off-Grid

Off-Grid Mode

Solar panels connect to Lumstor and home loads. No grid connection is required.

Hybrid

Hybrid Mode

Solar panels and grid input work together, with battery storage available for night use and backup.

Parallel

Parallel Expansion

Multiple Lumstor units can be connected for capacity growth on larger residential or commercial projects.
