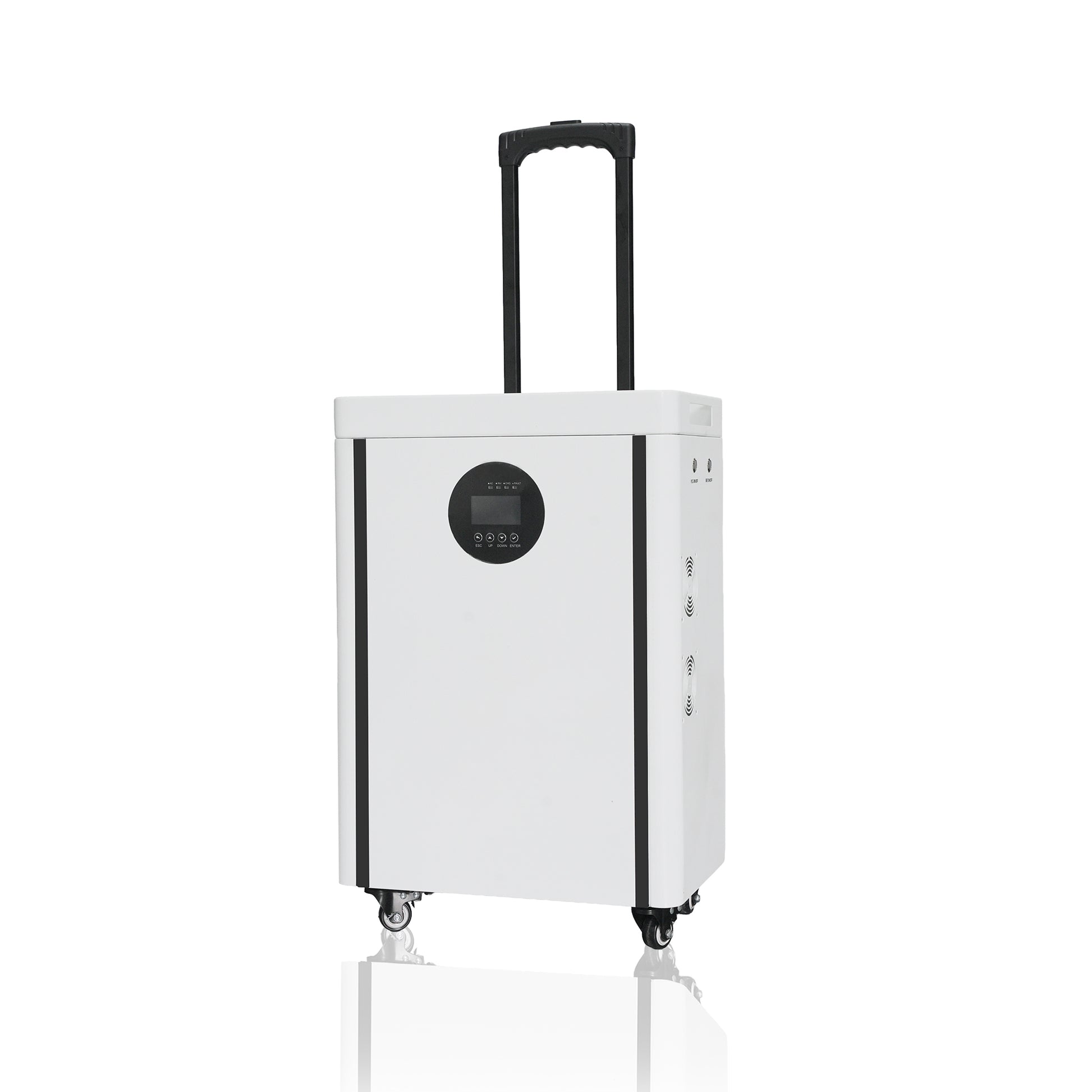

XH-3.6KW/5KWH Solar Energy Storage System | 5 kWh Home Energy Storage

XH-3.6KW/5KWH Solar Energy Storage System | 5 kWh Home Energy Storage

$800.00
$800.00
Sale Sold out
Shipping calculated at checkout.
 Place of Origin:  China

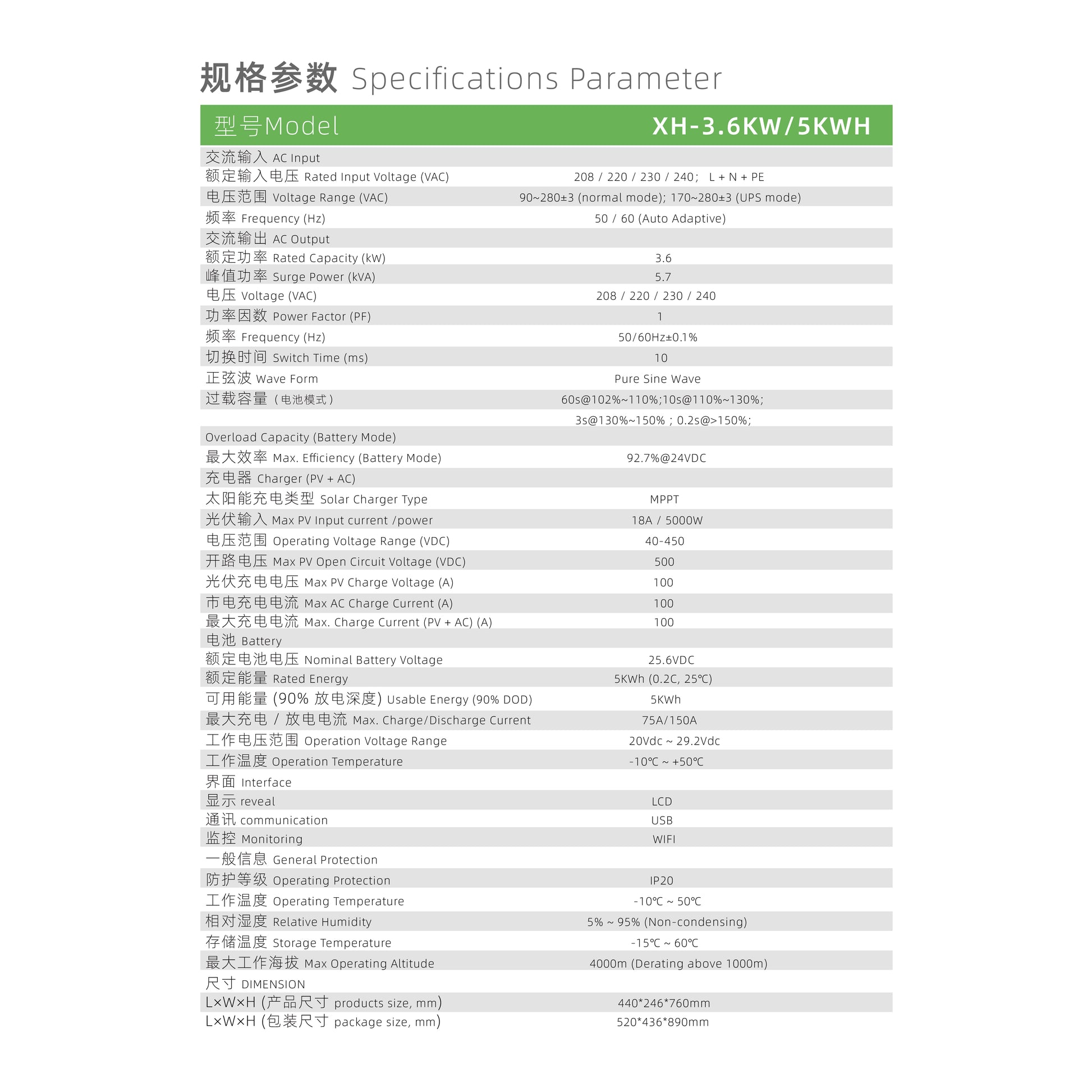

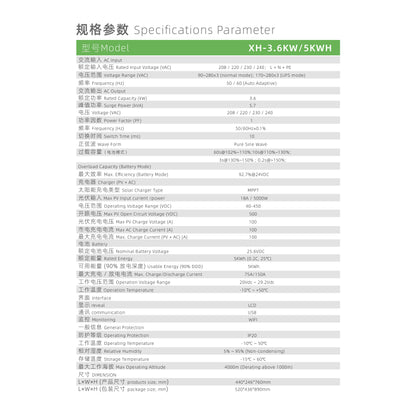

                                      Battery
 Nominal Battery Voltage：        25.6VDC
 Rated Energy：                5KWh (0.2C, 25°C)
 Usable Energy (90% DOD)：    5KWh
 Max. Charge/Discharge Current：      75A/150A
 Operation Voltage Range：      20Vdc ~ 29.2VdcI
 Operation Temperature：      -10°C~+50°C
                                    DIMENSION

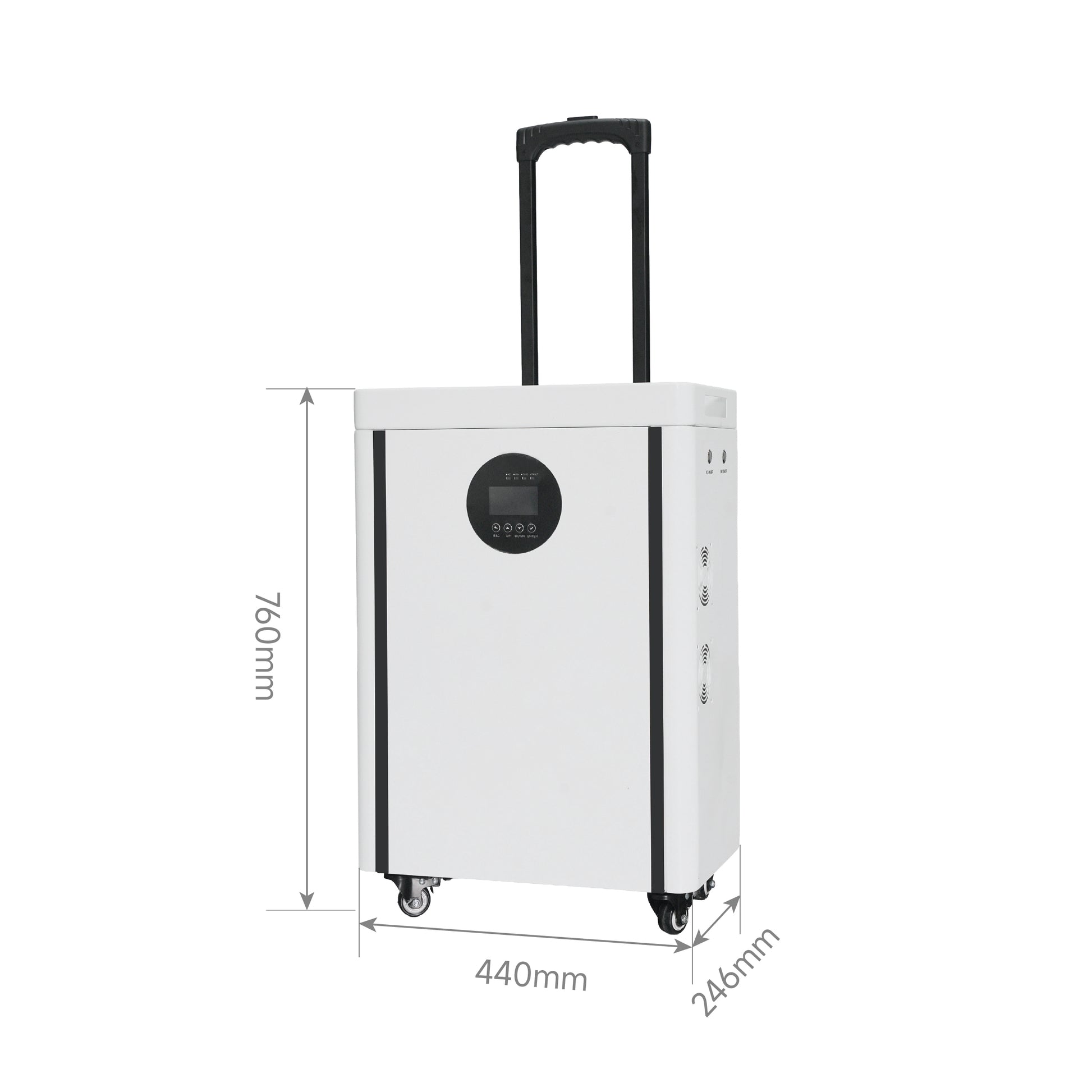

 Products size, mm：    440*246*760mm
 package size, mm)：520*436*890mm
 Kgweight(Nw Kg)：    60.6KG
 Kgweight(Gw Kg)：    62.6KG
                                  General Protection
 Max Operating Altitude：          4000m (Derating above 1000m)
 Storage Temperature：           -15°C~60°C
 Operating Temperature：        -10°C~50°C
 Relative Humidity：          5% ~95%
 Operating Protection：         IP20
                                Interface
 Monitoring：                     WIFI
 communication：               USB
 reveal：                     LCD
                                AC Input
 Rated Input Voltage (VAC)：   208/220/230/240; L+N+ PE
 Voltage Range (VAC)：   90~280+3 (normal mode); 170~280+3 (UPS mode)
 Frequency (Hz)：   50 / 60 (Auto Adaptive)
                                AC Output
 Rated Capacity(kw)：   3.6
 surge Power(kVA)：       5.7
 voltage(VAC)：   208 / 220 / 230 / 240
  Power Factor (PF)：     1
 Frequency (Hz)：    50/60Hz+0.1%
 Switch Time(ms)：   10
 wave Form：  Pure Sine Wave
 Overload Capacity (Battery Mode)：
                                                                 60s@102%~110%;10s@110%~130%;
                                                                  35@130%~150%;0.25@>150%;
  Max. Efficiency (Battery Mode)：   92.7%@24VDC
                                  Charger (PV+AC)
  solar charger Type：   MPPT
 Max PV Input current /power：   18A / 5000W
 Operating Voltage Range (VDC)：   40-450
 Max PV Open Circuit Voltage (VDC)：   500
 MaxPv Charge Voltage(A)：   100
 Max AC Charge Current (A)：    100
 Max.Charge Current(PV+AC)(A)：   100
View full details
1 3
Description
 Place of Origin:  China
                                      Battery
 Nominal Battery Voltage：        25.6VDC
 Rated Energy：                5KWh (0.2C, 25°C)
 Usable Energy (90% DOD)：    5KWh
 Max. Charge/Discharge Current：      75A/150A
 Operation Voltage Range：      20Vdc ~ 29.2VdcI
 Operation Temperature：      -10°C~+50°C
                                    DIMENSION
 Products size, mm：    440*246*760mm
 package size, mm)：520*436*890mm
 Kgweight(Nw Kg)：    60.6KG
 Kgweight(Gw Kg)：    62.6KG
                                  General Protection
 Max Operating Altitude：          4000m (Derating above 1000m)
 Storage Temperature：           -15°C~60°C
 Operating Temperature：        -10°C~50°C
 Relative Humidity：          5% ~95%
 Operating Protection：         IP20
                                Interface
 Monitoring：                     WIFI
 communication：               USB
 reveal：                     LCD
                                AC Input
 Rated Input Voltage (VAC)：   208/220/230/240; L+N+ PE
 Voltage Range (VAC)：   90~280+3 (normal mode); 170~280+3 (UPS mode)
 Frequency (Hz)：   50 / 60 (Auto Adaptive)
                                AC Output
 Rated Capacity(kw)：   3.6
 surge Power(kVA)：       5.7
 voltage(VAC)：   208 / 220 / 230 / 240
  Power Factor (PF)：     1
 Frequency (Hz)：    50/60Hz+0.1%
 Switch Time(ms)：   10
 wave Form：  Pure Sine Wave
 Overload Capacity (Battery Mode)：
                                                                 60s@102%~110%;10s@110%~130%;
                                                                  35@130%~150%;0.25@>150%;
  Max. Efficiency (Battery Mode)：   92.7%@24VDC
                                  Charger (PV+AC)
  solar charger Type：   MPPT
 Max PV Input current /power：   18A / 5000W
 Operating Voltage Range (VDC)：   40-450
 Max PV Open Circuit Voltage (VDC)：   500
 MaxPv Charge Voltage(A)：   100
 Max AC Charge Current (A)：    100
 Max.Charge Current(PV+AC)(A)：   100
